STEEL STRAPPING TOOLS
SHT-2532
WINDLASS TYPE TENSIONER
- Features
- 윈치형 철밴드 조임기로서 Windlass shaft에 철밴드가 감기면서 포장하는 방식이다. 잡음대는 주물과 초경을 은납으로 접합한 것이 특징이다.
- This is a windlass type tensioner that packs a package rolling a steel strap around the windlass shaft. The gripper which is made of tungsten carbide and body are strongly attached by silver soldering.
Specifications
- MODEL
- SHT-2532, SHT-2532R
- DESCRIPTION
- WINDLASS TYPE
- STRAP WIDTH
- 25mm (1″) to 32mm (1¼″)
- STRAP THICKNESS
- 0.8mm (0.032″) to 1.2mm
- STRAP FINISH
- PAINTED, PAINTED AND WAXED, DRY
- PRODUCT WEIGHT
- 4.80kg (10.59 lb)
- PACKING WEIGHT
- 5.30kg (11.69 lb)

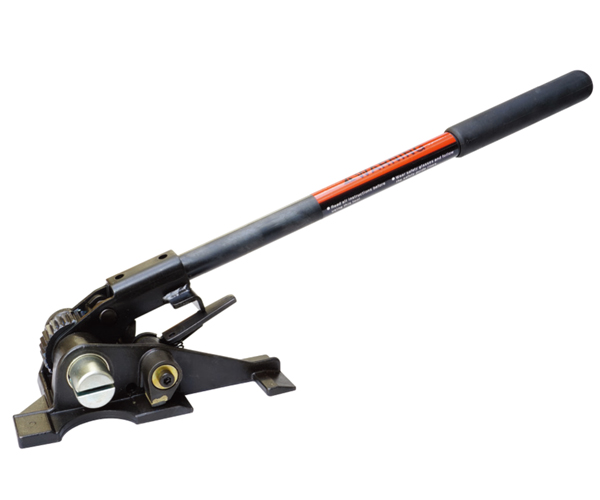

Product Image & Video
