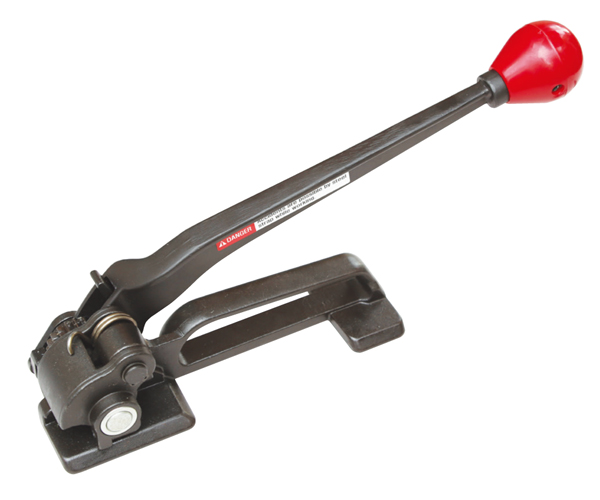

STEEL STRAPPING TOOLS
SFT:EFT-190
FEEDWHEEL TYPE TENSIONER
- Features
- 크기가 작아 휴대하기 편리한 Rack&pinion type의 철밴드 조임기이다.

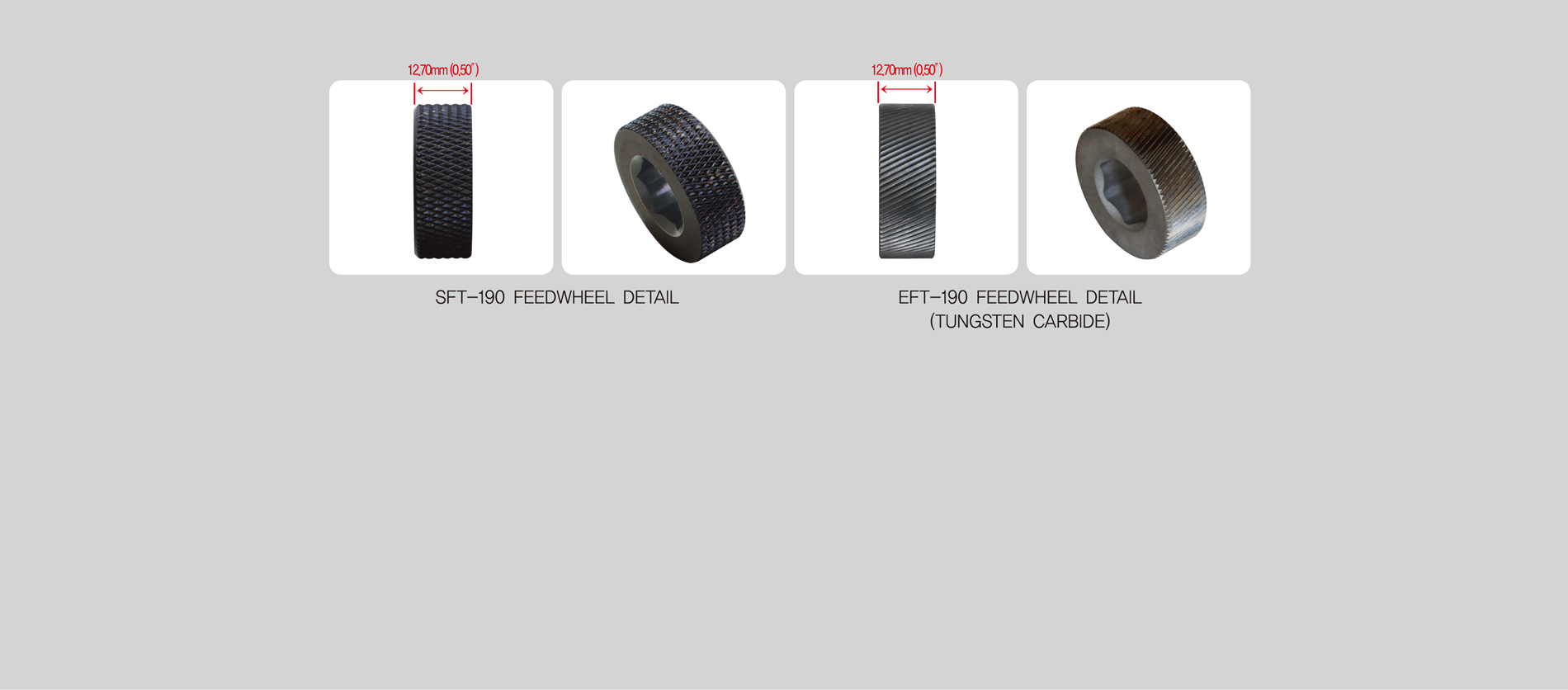

- 철밴드를 겹쳐 조이기 때문에 반드시 왁스코팅이 된 철밴드를 사용해야 한다. SFT-190의 Feedwheel은 열처리 된 탄소강으로 되어있으며, EFT-190의 Feedwheel은 초경합금으로 만들어진다. 주요부품인 Feedwheel과 Clutch plug는 교체하여 사용할 수 있다.
- It is highly recommended the usage of a wax-coated steel strap with this tensioner as it tightens an overlapped steel strap. The feedwheel of SFT-190 is heat-treated carbon steel, while the feedwheel of EFT-190 is made of tungsten carbide. The feedwheel and clutch plug are spare parts and are replaceable.
Specifications
- MODEL
- SFT-190
- EFT-190
- DESCRIPTION
- FEEDWHEEL TYPE
- FEEDWHEEL TYPE
- STRAP WIDTH
- 13mm (½″) to 19mm (¾″)
- 13mm (½″) to 19mm (¾″)
- STRAP THICKNESS
- 0.4mm (0.016″) to 0.7mm (0.028″)
- 0.4mm (0.016″) to 0.7mm (0.028″)
- STRAP FINISH
- PAINTED AND WAXED
- PAINTED AND WAXED
- PRODUCT WEIGHT
- 2.20kg (4.85 lb)
- 2.25kg (4.96 lb)
- PACKING WEIGHT
- 2.40kg (5.30 lb)
- 2.45kg (5.40 lb)
Product Image & Video
